ORPHEUS


SPECIFICATIONS

Nominal impedance6 Ω
Recommended amplifier power50 - 260 W
Frequency range (±2 dB)41 - 20000 Hz
                                          44 - 20000 Hz*
Lf corner (-6 dB) 34 Hz
                             38 Hz*
Crossover frequency150/1800 Hz
Order in crossover network:
Low frequency1st order
Mid frequency1st & 3rd orders
High frequency3rd order
Sensitivity (2,83 V/1 m)87 dB
Speaker drivers:
10" paper-based woofer, designed & manufactured by AUDES
6½" paper-based mid/woofer with phase correction system, designed & manufactured by AUDES
1" tweeter by SEAS
Dimensions (inches)45" H x 14¾" W x 22½"D
Dimensions (mm)1140 H x 374 W x 570 D
Weight65 kg/143 lbs

*ATTENTION: LOW-FREQUENCY SEALED (CLOSED) PORT DESIGN WAS CREATED FOR OPTIMAL USAGE WITH LOW IMPEDANCE (APPROXIMATELY 2 Ω) TUBE AMPLIFIERS!
AUDES ORPHEUS is a product representing all of our wealth of knowledge and expertise in the area of understanding a sound as an artistic form of expression and its influence on human perception. AUDES ORPHEUS is a carefully balanced unison of music, esthetics and physics capable of delivering the most intricate nuances of musical sounds.

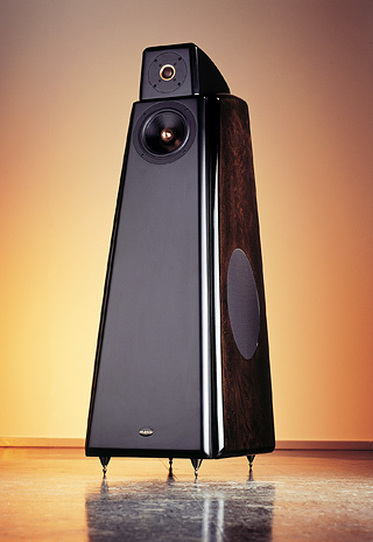

The cabinet design is unique and shaped as a truncated pyramid. The absence of parallel walls eliminates pronounced resonance waves and, consequently, undesirable transmission surges. Along with complex internal partitions, the decorative side panels provide additional cabinet rigidity and its distinct shape. The overall combination of these design features rewards listeners with the most accurate and distinct reproduction of musical passages.


The tweeter is located in a special vibration-absorption cabinet featuring a narrow-front cabinet design and sleek shape. Mid-bass and tweeter drivers are carefully position at the locations that optimize listener's ability to enjoy the most intricate musical experience. An isolated crossover compartment protects the system from the detrimental influence of sound fluctuations on the crossover network. AUDES ORPHEUS features a side firing 10" woofer - a proprietary product of AUDES corporation. Our handmade, paper based woofer features a powerful magnet with an extra-rigid, die cast aluminum basket frame. These features lead to the reproduction of a distinctive and accurate sound. The unit is equipped with adaptable low-frequency port tuning capability including regime optimization for vacuum tube amplification.

Adjustable, ultra-firm positioning and high quality floor spike system.
QUALITY
  • Three way, bass reflex system
  • Pyramid shape
  • Extremely rigid cabinet
  • Complex internal bracing structure
  • MDF based cabinet 25 mm thikness
  • Side panels used as an additional reinforcement as well as esthetical complement to a design concept using rare wood veneer
  • Side firing woofer created to narrow front speaker panel
  • Separate, isolated tweeter cabinet structure
  • Mid-upper crossover enclosed in a separate, isolated chamber
  • Audiophile, worlds best components
  • MUNDORF capacitors (MCAP SUPREME), coils, resistors from the world renowned high-end audio parts manufacturer from Germany
  • All internal wiring by AUDIENCE
  • CARDAS binding posts
  • Point-to-point soldering on all crossover components. The crossover compartment is physically isolated in its own chamber and is accessible through a back panel
  • Our driver choice for the tweeter element was an impeccably accurate and absolutely astonishing MILLENNIUM tweeter by SEAS
  • In search of the perfect companion for the SEAS's tweeter, AUDES has created its own, custom designed, proprietary mid-bass driver. This amazing unit features paper based cone aluminum die cast basket frame along with super powerful magnet
