Grimm Master Clock

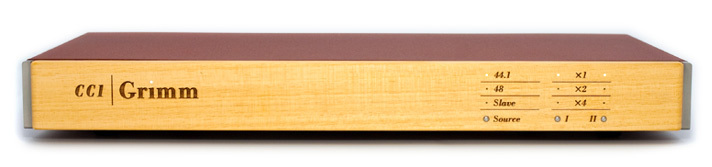

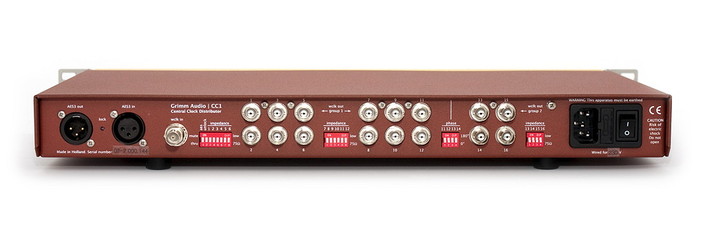

Grimm Audio’s CC1 brings the incredible clock stability of the AD1 to your current setup! The CC1 accepts Word Clock and distributes a super high quality Word Clock sync to all equipment in your system. Alternatively, use the CC1 to reclock and de-jitter the s/pdif digital audio connection between your CD transport or media server and DAC (a set of XLR-RCA conversion cables is provided with the unit). Now, any high end system can benefit from some of the features of our AD1’s unique sound quality like ultimate musical timing and stability of tone.
“Owing to a radically redesigned discrete crystal oscillator, clock stability betters that of even the best test equipment available.”
Grimm Audio’s extensive research into the correlation between jitter and sound quality brought to light that emotional response to music is vastly more sensitive to jitter than previously realized. Attention turned from “making jitter low” to achieving the most stable clock possible. This research turned up a surprising array of previously underestimated performance factors like power supply noise, oscillator control circuit noise and low-level crosstalk. Owing to a radically redesigned discrete crystal oscillator, clock stability betters that of even the best test equipment available.
To sync to an external reference the CC1 sports a PLL offering an astounding 90dB of jitter suppression at 10Hz, further improving at 60dB/dec. The CC1 offers base rates of 44.1kHz and 48kHz and 1/2/4 multiples in separately selectable groups, in addition to an s/pdif reclocker for cleaning the digital feed to your DA converter. Like all Grimm Audio products, the CC1 features striking styling and solid build quality.
Features
Download the Grimm CC1 leaflet pdf
Read the Grimm CC1 manual pdf
Read the Hifi World review of the CC1 pdf
“Owing to a radically redesigned discrete crystal oscillator, clock stability betters that of even the best test equipment available.”
Grimm Audio’s extensive research into the correlation between jitter and sound quality brought to light that emotional response to music is vastly more sensitive to jitter than previously realized. Attention turned from “making jitter low” to achieving the most stable clock possible. This research turned up a surprising array of previously underestimated performance factors like power supply noise, oscillator control circuit noise and low-level crosstalk. Owing to a radically redesigned discrete crystal oscillator, clock stability betters that of even the best test equipment available.
To sync to an external reference the CC1 sports a PLL offering an astounding 90dB of jitter suppression at 10Hz, further improving at 60dB/dec. The CC1 offers base rates of 44.1kHz and 48kHz and 1/2/4 multiples in separately selectable groups, in addition to an s/pdif reclocker for cleaning the digital feed to your DA converter. Like all Grimm Audio products, the CC1 features striking styling and solid build quality.
Features
- ultra-low jitter clock source
- generate and slave to word clock
- s/pdif reclocking
- sample rates from 44.1kHz up to 192kHz
- audiophile construction details
Download the Grimm CC1 leaflet pdf
Read the Grimm CC1 manual pdf
Read the Hifi World review of the CC1 pdf
